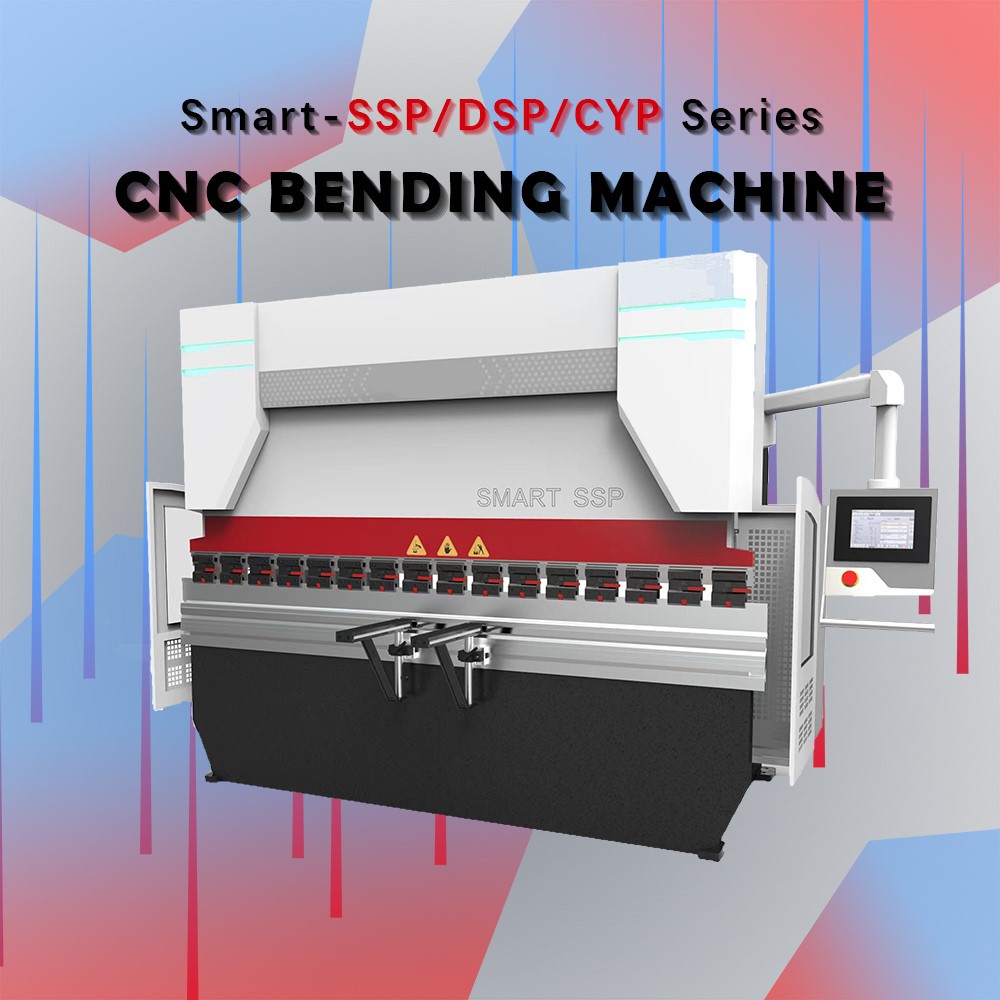

Sheet Hlau dabtsi yog khoov tshuab
Khoom Description
Peb cov ntawv hlau dabtsi yog khoov tshuab yog qhov kev daws teeb meem zoo tshaj plaws rau txhua yam koj xav tau ua haujlwm hlau. Nrog rau qhov tseeb thiab muaj peev xwm khoov tau zoo, peb lub tshuab tuaj yeem ua ntau yam khoom thiab thicknesses. Nruab nrog cov thev naus laus zis siab heev thiab cov yam ntxwv zoo rau cov neeg siv, koj yuav tuaj yeem tsim qhov khoov thiab cov duab uas koj xav tau tsis muaj sijhawm. Txawm hais tias koj yog ib tus kws tshaj lij hlau lossis cov neeg nyiam ua haujlwm, peb lub tshuab ua hlau hlau yog cov cuab yeej zoo tshaj plaws rau kev ua tiav cov txiaj ntsig zoo. Tshawb xyuas peb cov kev xaiv niaj hnub no kom pom lub tshuab zoo meej rau koj cov kev xav tau.
| Tsis muaj | Kev teeb tsa | Tus nqi | chav tsev | Lus ceeb toom | |
| 1 | Nominal siab | 1350 | KN | ||
| 2 | Foldable phaj dav | 3200 | mm | ||
| 3 | Swb stroke | 200 | mm | ||
| 4 | Qhov siab qhib qhov siab tshaj plaws | 420 | mm | ||
| 5 | Kab sib nrug | 2700 | mm | ||
| 6 | caj pas tob | 400 | mm | ||
| 7 | Ceev ceev | 160 | mm / s | ||
| 8 | Rov qab ceev | 130 | mm / s | ||
| 9 | Ua hauj lwm ceev | 10 | mm / s | ||
| 10 | Main lub cev muaj zog | 11 | Kw | servo lub cev muaj zog | |
| 11 | CNC system | TIAB SA 53T | Netherlands | ||

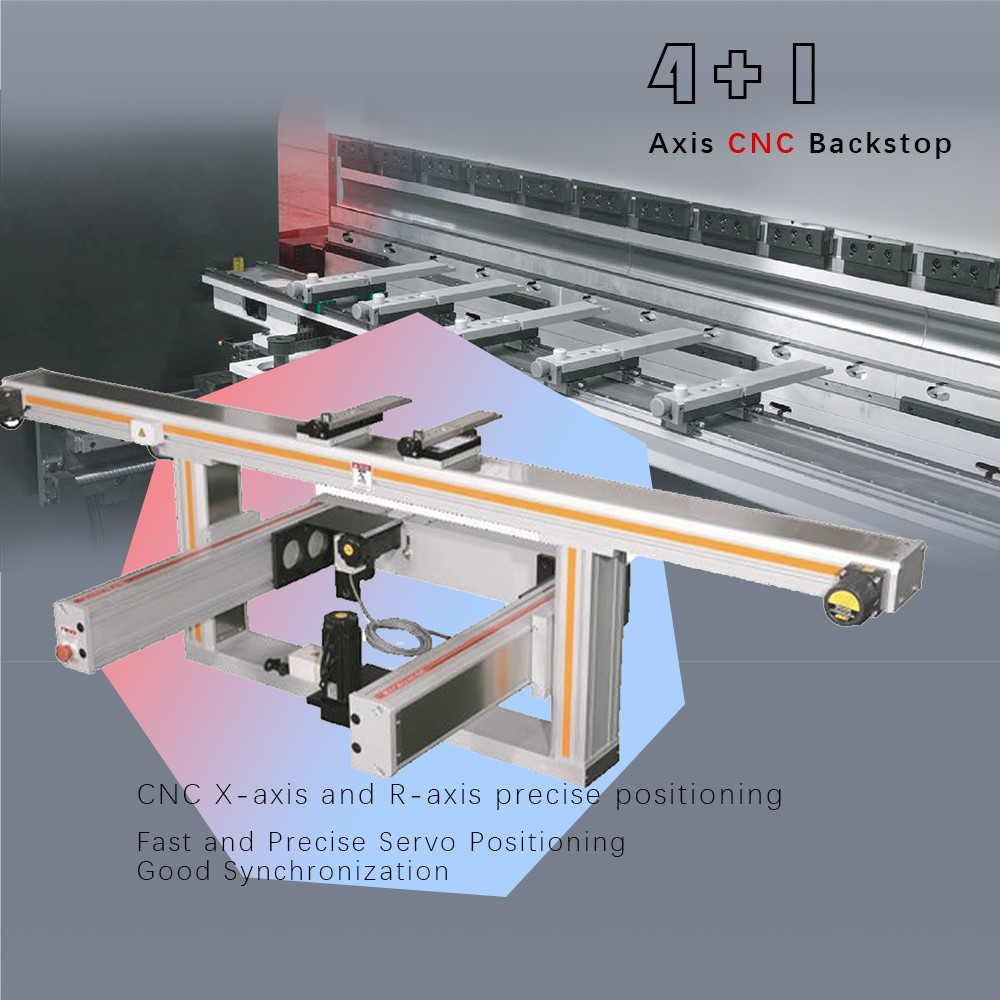

| 12 | X-axis taug kev ntawm rear stopper | 500 | mm | ||
| 13 | Tus lej tswj axes | 4 plus 1 Axis (Y1,Y2,X,R+V) | |||
| 14 | Tshuab cuab yeej raug | Slider rov raug | Tsawg dua lossis sib npaug rau ±0.01 | mm | |
| 15 | Swb positioning raug | Tsawg dua lossis sib npaug rau ±0.02 | mm | ||
| 16 | Workpiece ncaj | 0.3 / m | mm | ||
| 17 | Khoov lub kaum sab xis yuam kev | <±30 | ′ | ||
| 18 | Raster scale daws teeb meem | 0.005 | mm | ||
| 19 | Cov khoom siv rov qab | X-axis taug kev | 500 | mm | |
| 20 | X-axis ceev | 200 | mm/s | ||
| 21 | positioning raug | ±0.05 | mm | ||
| 22 | Repetical positioning raug | ±0.015 | mm | ||
| 23 | Tshuab hnyav | 10 T | T | ||
| 24 | Tshuab diamentions | L 3500 / W 1580 /H 2500 | mm | ||
Sheet hlau dabtsi yog khoov tshuab feem ntau siv nyob rau hauv kev lag luam tsim rau ntau yam kev siv, xws li:
1. Fabrication ntawm cov khoom hlau xws li enclosures, txee, thiab thav duab.
2. Kev tsim cov khoom siv hauv lub cev, suav nrog lub qhov rooj, hoods, thiab lub cev.
3. Kev tsim cov HVAC cov khoom xws li cov kav dej thiab cov vaj tsev.
4. Kev tsim cov khoom lag luam thiab cov khoom siv tshuab, suav nrog cov hlua khi, panels, thiab kev txhawb nqa.
5. Kev tsim cov khoom vaj tsev xws li cov ru tsev hlau, cov kav dej, thiab cov facades.
6. Kev tsim cov khoom siv xws li rooj tog zaum, cov khoom siv hluav taws xob, thiab cov khoom siv hlau.
7. Kev tsim cov khoom siv kho mob, suav nrog cov txee, lub laub, thiab cov ncej.
8. Kev tsim cov khoom siv ua liaj ua teb xws li cov hlua khi, kev txhawb nqa, thiab cov ncej.
9. Kev tsim kho ntawm aerospace thiab cov cuab yeej tiv thaiv thiab cov khoom siv.
10. Kev tsim cov khoom siv teeb pom kev zoo, cov iav tsom iav, thiab cov hnub ci vaj huam sib luag.
Qauv:
FAQ:
1. Dab tsi yog daim ntawv hlau dabtsi yog khoov tshuab?
Daim ntawv hlau dabtsi yog khoov tshuab yog cov cuab yeej siv tshuab siv los khoov thiab kho cov ntawv hlau ua ntau yam duab thiab ntau thiab tsawg.
2. Cov ntaub ntawv dab tsi tuaj yeem siv nrog cov ntawv hlau dabtsi yog khoov tshuab?
Sheet hlau dabtsi yog khoov tshuab tuaj yeem siv nrog ntau yam khoom xws li txhuas, tooj dag, tooj liab, stainless hlau, thiab carbon hlau.
3. Puas tuaj yeem ua cov ntawv hlau dabtsi yog khoov tshuab tsim cov duab nyuaj?
Yog lawm, cov ntawv hlau dabtsi yog khoov tshuab muaj peev xwm tsim cov duab nyuaj thiab sib txawv nyob ntawm seb lub tshuab tshwj xeeb.
4. Dab tsi cuam tshuam rau qhov raug ntawm cov ntawv hlau dabtsi yog khoov tshuab?
Qhov tseeb ntawm daim ntawv hlau dabtsi yog khoov tshuab yog cuam tshuam los ntawm ntau yam xws li lub thickness thiab hardness ntawm cov khoom siv, qhov zoo ntawm cov cuab yeej, thiab precision ntawm lub tshuab.
5. Kev ntsuas kev nyab xeeb dab tsi yuav tsum tau coj los siv thaum siv lub tshuab ua hlau dabtsi yog khoov?
Thaum siv cov ntawv hlau dabtsi yog khoov tshuab, cov neeg ua haujlwm yuav tsum ua raws li tag nrho cov lus qhia txog kev nyab xeeb nrog rau kev hnav cov khoom tiv thaiv xws li hnab looj tes thiab tsom iav qhov muag, ua kom thaj chaw ua haujlwm huv si thiab sib koom ua ke, thiab ua kom muaj cua zoo.
6. Cov ntawv hlau dabtsi yog khoov tshuab tuaj yeem siv tau?
Yog lawm, cov ntawv hlau dabtsi yog khoov tshuab tuaj yeem ua haujlwm nrog kev siv tshuab computer suav nrog (CNC) tshuab, tso cai rau kev ua haujlwm siab dua thiab ua haujlwm hauv ntau lawm.
7. Yuav tsum muaj kev saib xyuas dab tsi rau cov ntawv hlau dabtsi yog khoov tshuab?
Kev saib xyuas tsis tu ncua yog xav tau rau cov ntawv hlau dabtsi yog khoov tshuab kom ntseeg tau tias lawv ua haujlwm zoo thiab ua haujlwm zoo. Qhov no suav nrog kev tu lub tshuab, hloov cov khoom hnav, thiab lubricating txav qhov chaw.
8. Cov ntawv hlau dabtsi yog khoov tshuab tuaj yeem ua raws li cov kev xav tau tshwj xeeb?
Yog, sheet hlau dabtsi yog khoov tshuab tuaj yeem ua raws li cov kev xav tau tshwj xeeb thiab cov kev xav tau. Qhov no suav nrog kev hloov kho rau cov cuab yeej, tshuab loj, thiab muaj peev xwm automation.
