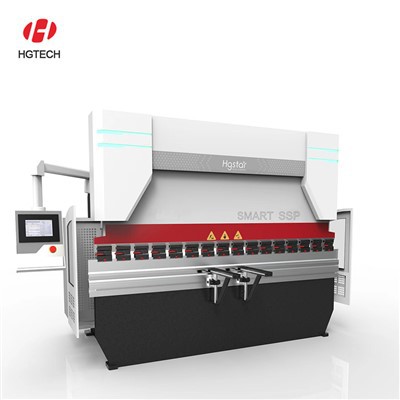

Nias nres
Pressbrake yog ib qho khoom siv uas tau tsim los ua kom yooj yim dua thiab ua kom zoo dua koj cov txheej txheem kev lag luam. Nrog nws cov cuab yeej technology thiab precision engineering, lub tshuab no muaj kev txhim khu kev qha thiab ua haujlwm tau zoo rau tag nrho koj cov kev xav tau hlau dabtsi yog khoov.
Nruab nrog tus neeg siv-phooj ywg interface thiab kev tswj hwm tsis siv neeg, Press Brake tso cai rau koj kom yooj yim qhov kev pab cuam thiab kho cov chaw kom ua tiav qhov khoov thiab cov duab nrog kev siv zog tsawg. Nws cov khoom siv ruaj khov thiab cov khoom siv ruaj khov ua kom muaj kev ua haujlwm ntev ntev, txo qis qis thiab kho cov nqi.
Main specification:
| Qauv | Siab (kN) |
Ntev (mm) |
nrug nruab nrab Housing (mm) |
caj pas tob (mm) |
Mob stroke (mm) |
Qhib Hight (mm) |
Main Tsav (kW) |
Qhov ntev (L x W x H) (mm) |
| 40/2000 | 400 | 2000 | 1600 | 200 | 110 | 335 | 4 | 2545x1510x2050 |
| 40/2500 | 400 | 2500 | 2000 | 200 | 110 | 335 | 4 | 2950x1510x2080 |
| 63/2000 | 630 | 2000 | 1600 | 250 | 110 | 350 | 5.5 | 2555x1600x2130 |
| 63/2500 | 630 | 2500 | 2000 | 250 | 110 | 350 | 5.5 | 2960x1600x2180 |
| 63/3200 | 630 | 3200 | 2600 | 250 | 110 | 350 | 5.5 | 3740x1600x2230 |
| 100/2500 | 1000 | 2500 | 2000 | 350 | 150 | 400 | 7.5 | 2980x1650x2330 |
| 100/3200 | 1000 | 3200 | 2600 | 350 | 150 | 400 | 7.5 | 3740x1650x2355 |
| 100/4000 | 1000 | 4000 | 3200 | 350 | 150 | 400 | 7.5 | 4550x1650x2450 |
| 100/5000 | 1000 | 5000 | 4000 | 350 | 150 | 400 | 7.5 | 5100x1500x2650 |
| 125/2500 | 1250 | 2500 | 2000 | 350 | 150 | 410 | 7.5 | 3980x1650x2370 |
| 125/3200 | 1250 | 3200 | 2600 | 350 | 150 | 410 | 7.5 | 3750x1650x2450 |
| 125/4000 | 1250 | 4000 | 3200 | 350 | 150 | 410 | 7.5 | 4550x1650x2470 |
| 125/5000 | 1250 | 5000 | 4000 | 350 | 150 | 410 | 7.5 | 5100x1500x2795 |
| 125/6000 | 1250 | 6000 | 4500 | 350 | 150 | 410 | 7.5 | 6100x1500x2895 |
| 160/2500 | 1600 | 2500 | 2000 | 350 | 150 | 425 | 11 | 2980x1715x2410 |
| 160/3200 | 1600 | 3200 | 2550 | 350 | 150 | 425 | 11 | 3750x1715x2450 |
| 160/4000 | 1600 | 4000 | 3200 | 350 | 190 | 450 | 11 | 4550x1715x2730 |
| 160/5000 | 1600 | 5000 | 4000 | 350 | 190 | 450 | 11 | 5100x1570x2900 |
| 160/6000 | 1600 | 6000 | 4500 | 350 | 190 | 450 | 11 | 6100x1570x3010 |
| 200/3200 | 2000 | 3200 | 2600 | 350 | 240 | 460 | 11 | 3750x1815x2715 |
| 200/4000 | 2000 | 4000 | 3200 | 350 | 240 | 460 | 11 | 4550x1815x2850 |
| 200/5000 | 2000 | 5000 | 3800 | 350 | 240 | 460 | 11 | 5100x1715x3020 |
| 200/6000 | 2000 | 6000 | 4500 | 350 | 240 | 460 | 11 | 6100x1715x3120 |
| 250/3200 | 2500 | 3200 | 2600 | 400 | 240 | 525 | 11 | 3750x2010x2850 |
| 250/4000 | 2500 | 4000 | 3200 | 400 | 240 | 525 | 11 | 4550x2010x3010 |
| 250/5000 | 2500 | 5000 | 3800 | 400 | 240 | 525 | 11 | 5100x1890x3190 |
| 250/6000 | 2500 | 6000 | 4500 | 400 | 240 | 525 | 11 | 6100x1890x3350 |
| 300/3200 | 3000 | 3200 | 2600 | 400 | 250 | 545 | 15 | 3740x2100x3235 |
| 300/4000 | 3000 | 4000 | 3200 | 400 | 250 | 545 | 15 | 4340x2100x3300 |
| 300/5000 | 3000 | 5000 | 3800 | 400 | 250 | 545 | 15 | 5100x2100x3430 |
Xovxwm Brake yog cov khoom siv ntau yam thiab sophisticated uas feem ntau siv nyob rau hauv niaj hnub manufacturing thiab fabrication txheej txheem. Cov tshuab no muaj peev xwm khoov thiab tsim ntau yam khoom siv nrog qhov tseeb, ua rau lawv zoo tagnrho rau ntau yam kev siv sib txawv.
Ib daim ntawv thov muaj peev xwm rau Press Brake yog nyob rau hauv kev tsim cov khoom siv hlau, xws li txhuas lossis hlau qhov chaw siv hauv kev lag luam tsheb. Cov cav tov tuaj yeem tsim kho kom ua tiav txoj kev khoov thiab cov duab uas yuav nyuaj lossis tsis tuaj yeem ua tiav manually. Qhov no ua rau cov txheej txheem tsim khoom tau zoo dua thiab cov khoom tiav zoo dua.
Ntxiv rau cov khoom siv tsheb, Xovxwm Brake kuj tseem siv tau rau hauv kev tsim cov rooj tog zaum, cov khoom siv vaj tsev, thiab lwm yam khoom siv hlau. Cov tshuab tuaj yeem tsim cov nkhaus nkhaus thiab cov kaum sab xis, tso cai rau cov qauv tsim tshwj xeeb thiab haum.
Lwm daim ntawv thov muaj peev xwm rau CNC dabtsi yog khoov tshuab yog nyob rau hauv kev tsim cov kav dej lossis cov raj. Los ntawm kev siv kev sib xyaw ua ke ntawm kev khoov thiab txiav cov txheej txheem, cov tshuab no tuaj yeem tsim cov kav dej thiab cov kav dej nrog qhov sib txawv ntawm qhov khoov thiab cov ces kaum uas yuav nyuaj rau kev ua tiav siv cov txheej txheem ib txwm muaj. Qhov no ua rau CNC dabtsi yog khoov tshuab yog qhov kev xaiv zoo tshaj plaws rau kev lag luam xws li HVAC, kav dej, thiab kev tsim kho.
Zuag qhia tag nrho, Press Brake muab ntau yam txiaj ntsig thiab yog ib feem tseem ceeb ntawm kev tsim khoom niaj hnub thiab kev tsim khoom. Nrog rau lawv lub peev xwm los ua kom tiav txoj kev khoov thiab cov duab nrog qhov tseeb qhov tseeb, lawv yog cov cuab yeej tseem ceeb rau kev tsim ntau yam khoom sib txawv.
Cim npe nrov: nias nres, manufacturers, lwm tus neeg, nqe, kev muag khoom
